A fans are extremely durable, efficient and have low-noise emission levels. They are the perfect fit for applicationswhich require large diameters, low power consumption and high air-flows at medium/low rpm.

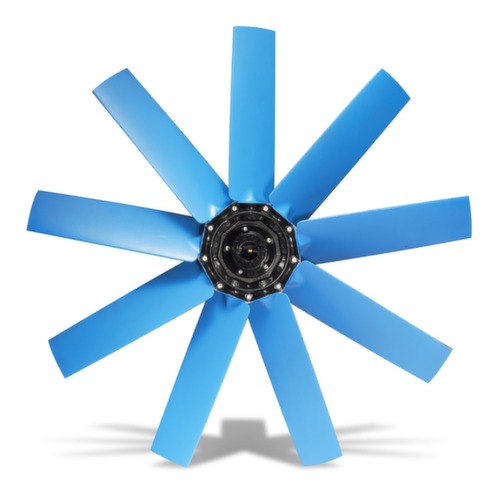

The NEW A fans are manufactures assembling variable pitch, wide-chord airfoil profile blades with a light aluminum alloy hub. The fans are the best choice for applications which demand high air-flows at medium/low rpm. A fans are extremely durable, efficient and low-noise. The fans can have 3/4/5/6/8 blades configurations both for clockwise and anticlockwise rotation and can produce a sucking or blowing air flow. A blades are available with right or left fixed setting angles ranging from 15° to 35°.

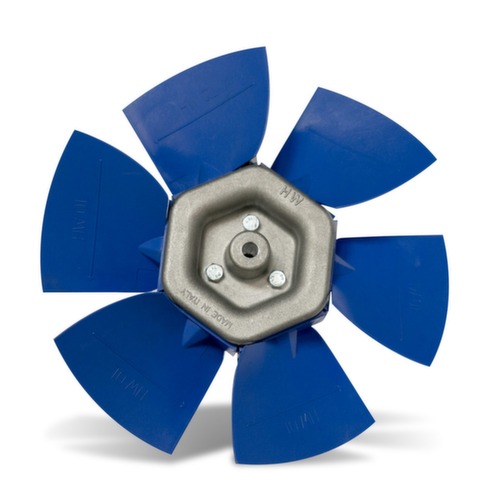

A fans are manufactured assembling variable-pitch angle airfoil profile blades with a light aluminum alloy hub. A fans can have 3/4/5/6/8 blades configurations both for clockwise and anticlockwise rotation and can produce a sucking or blowing air flow. A blades are available with right or left fixed setting angles ranging from 15° to 35°.
| Material | Description | Color | Op. temperature |
|---|---|---|---|
| PPG | Glass Reinforced Polypropylene (PP 30% glass) | From -20°C to +85°C | |
| PAG | Glass Reinforced Polyamide (PA6) | From -40°C to +120°C | |
| PAA (ATEX) | Antistatic Polyamide | From -40°C to +120°C | |
| PAX (ATEX) | Antistatic, Self extinguishing PA | From -40°C to +120°C | |
| PAM (ATEX) | Antistatic, Self extinguishing, Magnetically shielded PA | From -40°C to +120°C |
21.65 - 38.03 mm
25°-45° T -58° F to +356° F°
550 -1100 mm 20°-37,5° T -40° C to +120° C°
450 -1282 mm 25°-50° T -50°C to +300°C°
Up to 2m mm
