AMCA 210-07 designed Wind Tunnel
HW Ventilation offers a range value-added services aimed at supporting our customers’ strategy.
We do not only design and sell products, but highly customized solutions and ad-hoc analyses to better satisfy our customers’ needs.
As part of our commitment to offer superior quality, high performance products, we recently decided to install a new wind tunnel at our facilities.
Though the tunnel we can run performance testing on axial impellers, and help you choose the right product for your needs.
Main features of AMCA 210-07 designed wind tunnel
- Designed to ANSI/AMCA 210-07 standard - testing methods for fans performance
- Extremely reliable method to test axial impellers, collect performance data and make them available through HasconWing® selection program
- Possibility to test customers’ fans and release a detailed report
- Important tool to test and develop new products and design customized solutions for our customers
HW Ventilation provides customized services aimed at the design, construction, installation of 3rd party wind tunnels.
Contact us now with any inquiry, and we will provide you with a full set of solutions, from feasibility studies, to design and engineering, from supply and commissioning to training and support.
How AMCA 210-07 designed wind tunnel works

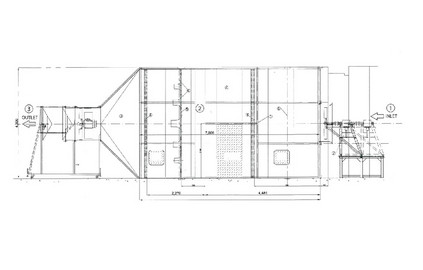

The open loop tunnel is characterized by a length of 10m and a test chamber with a rectangular section 4.7m x 4.2m x 7m.
The airflow enters the chamber pushed by the fan under test and passes through an inlet which is characterized by an interchangeable duct, having set diameter and radius of curvature.
Then, the airflow passes through two grids to break the large-scale turbulence vortices thus to reduce the scale.
After that, in the center of the room the airflow meets a wall where converging nozzles of different diameters (according to different requirements) are installed.
At that point the airflow exits the chamber. At the end of the room an extraction duct with an HasconWing® fan together with a metal hopper extract the air and allow the closing and pressurization of the chamber.
Some pitot tubes, which measure the airflow pressure, and some thermocouples are also installed inside the chamber.
